VersaPower®-Xtreme™ Induction Power Supplies

Radyne Versapower Xtreme Induction Power Supply

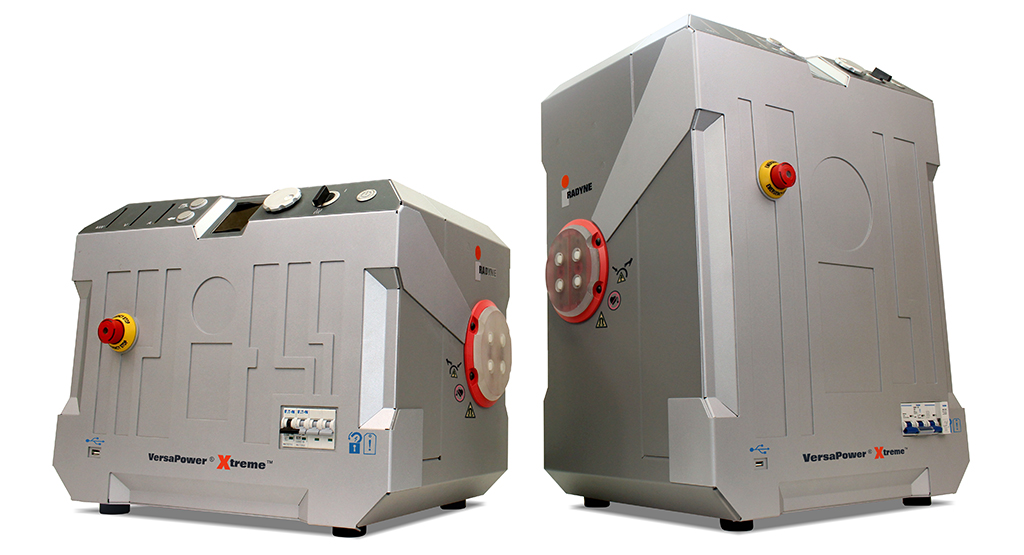

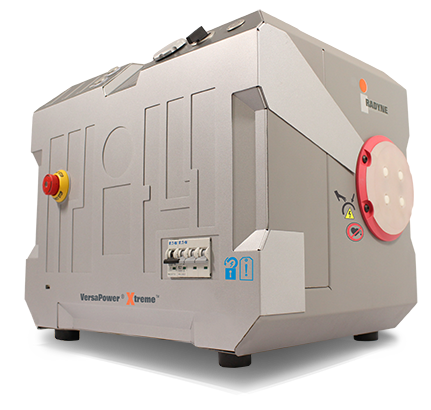

VersaPower®-Xtreme™ induction power supplies are highly versatile, tabletop induction power supplies designed to deliver the power and accuracy needed for small to medium-sized jobs. All VersaPower®-Xtreme™ units come equipped with built-in Digital-iQ™ control firmware that features a full-color display and makes operation easy and straightforward.

Versatile and Powerful

Induction heating applications

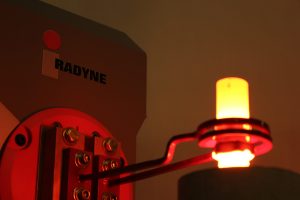

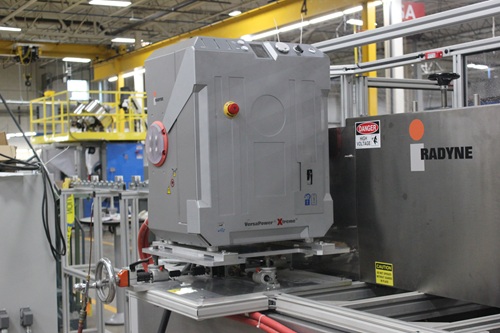

VersaPower®-Xtreme™ power supplies are designed to allow manufacturers freedom in how they integrate the unit into their production process. Left and right coil mounting positions allow the power supply to be orientated in a way that is best suited for your workflow and space constraints. Although VersaPower®-Xtreme™ units are compatible with remote heat stations, they do not require one to operate, unlike other power supplies in this segment. This means that the induction coil can be attached directly to the side of the power supply which can save considerable space in some floor layouts. VersaPower®-Xtreme power supplies are available in both high and low-frequency configurations and can handle the most demanding jobs with units ranging from 5kW all the way up to 50kW power output.

Digital-iQ™

All VersaPower®-Xtreme™ power supplies come equipped with built-in Digital-iQ™. Digital-iQ™ is a proprietary control firmware developed by Radyne that is designed to offer maximum control over heat times, power level, current, voltage, and internal system diagnostics. Learn more about Digital-iQ.

Full-color LCD display

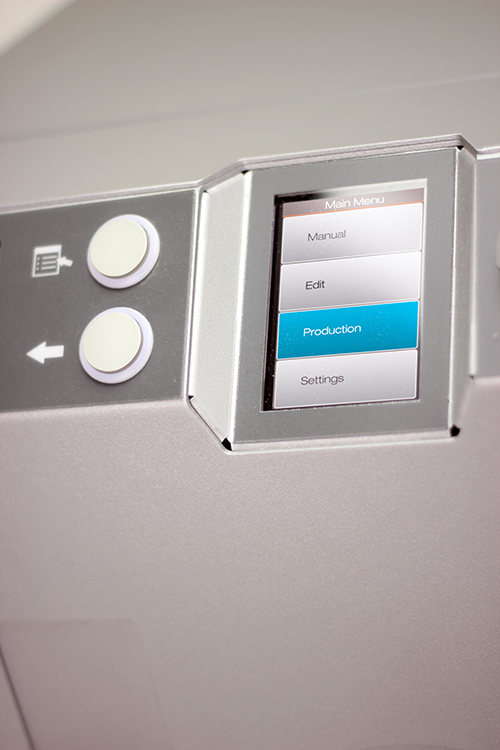

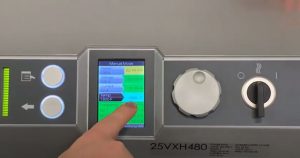

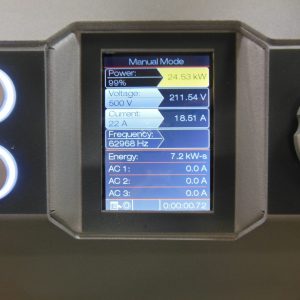

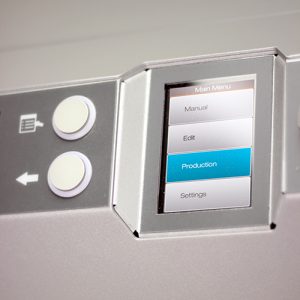

The full-color LCD display shows important information about the power supply such as power, current, voltage, cycle time, and system faults. The screen is controlled with large buttons and a rotary encoder designed to be easy to operate with gloves or other personal protective gear.

Safety

The VersaPower system is equipped with a safety detection technology able to automatically disengage the unit in case of hardware failure or hazardous conditions. The emergency stop button and electric breaker are placed in an easily reachable position for secure operation.

Features

Connections	USB Port PLC Port Ethernet Port Water Drain and Feed Ports
Real Time Digital-iQ™ Operating System	Controller Monitoring Water Temp In, Out Coil Return Water Temp Water Flow Rate AC Input Current DC Buss Voltage & Current Internal Humidity Measurement Dew point Calculation Inverter Current and Coil Voltage Multiple language support 2 GB Storage
Output	Dual output power supply
Safety	Hardware failure or dangerous condition detection Emergency stop button & electric breaker Circuit breaker lockout device Output covers to seal water ports and electrically insulate live connections
Service & Support	24-7 technical support and service VersaPower®-Xtreme™ induction power supply training seminars*
Upgrades	Up to 8 Capacitors (Small Cabinet Models) Up to 16 Capacitors (Large Cabinet Models) External PLC
Warranty	12 month limited warranty Extended warranty*

*Available for purchase

Tech Specs


	Small Cabinet		Large Cabinet
	5 kW	10 kW	15 kW	25 kW	30kW	40 kW
Models Listing	5VXL240 5VXL480 5VXH240 5VXH480	10VXL240 10VXL480 10VXH240 10VXH480	15VXL240 15VXL480 15VXH240 15VXH480	25VXL240 25VXL480 25VXH240 25VXH480	30VXLS240 30VXLS480	40VXH480P
Frequency	High (100-400 kHz) or Low (20-80 kHz)
Line Voltage	High (480 VAC) or Low (240 VAC)

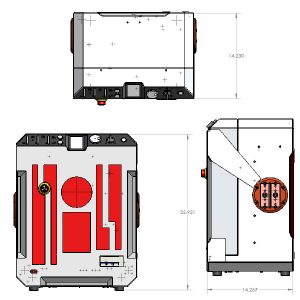

Dimensions	16.15D x 20.26W x 16.75H in. [410.2D x 514.6W x 425.5H mm]		16.15D x 20.26W x 26.13H in. [410.2D x 514.6W x 663.6H mm]
Weight	68 lbs.	72 lbs.	76 lbs.	100 lbs.	110 lbs.

Accessories

Spare Parts

Item	Description
5.00 uF Capacitor	5.00uF capacitor (low frequency models (20-80kHz only)
2.40 uF Capacitor	2.40uF capacitor (low frequency models (20-80kHz only)
1.20 uF Capacitor	1.20uF capacitor (low frequency models (20-80kHz only)
0.66 uF Capacitor	0.66uF capacitor (low frequency models (20-80kHz only)
0.33 uF Capacitor	0.33uF capacitor (low frequency models (20-80kHz only)
0.21 uF Capacitor	0.21uF capacitor (low frequency models (20-80kHz only)
Output Mount Cover	Safety Cover for outputs
Output Mount Hardware Kit	Kit Includes: spare stainless steel inductor hardware (screws, washers & lock washers), output mount nylon hardware an d O-rings.
Tuning Hardware Kit (5 – 15 kW)	Kit includes: stainless steel capacitor mounting hardware and a 5/16″-18 thread x 1″ hex tuning nut
Tuning Hardware Kit (25 – 50 kW)	Kit includes: stainless steel capacitor mounting hardware and a 5/16″-18 thread x 1″ hex tuning nut
Standard External PLC Cable	External PLC I/O cable assembly

Accessories

Item	Description
Table-top Mounting Hardware Kit	Kit includes: 4-vibration damping sandwich mounts for mounting the power supply to tabletop surfaces, as well as, assorted hardware for varying surface thicknesses
Customized Output Inductors	Pancake, channel, solenoid & MIQ scanning types.
Adapter Paddles	Adapter blocks for output inductors, quick disconnects, cable assemblies, etc.
Output Inductor Quick Disconnect	Toggle clamping style advantageous for changing output inductors quickly, great for systems that require multiple Inductor change-outs.
280 A Remote Heat Station	Separates workpiece heating from the induction power supply, ideal for power supplies located in small spaces.
Temperature Paints	Indicates temperature during heating process, great for determining specific recipe settings
Foot Switch	Remotely control the induction power supply’s Heat On/Off switch.
External PLC Cables	Non-standard external PLC cables in a variety of connector styles & lengths to any application requirement.
Safety Guarding	Provides for a safer operator environment and is customizable to specification.
Chiller Cooling Systems	Portable coolant system for mobile induction heating
Controlled Atmosphere Inductor Tooling Chambers	Prevents oxidation by providing for a contained nitrogen gas mixture induction heating chamber
