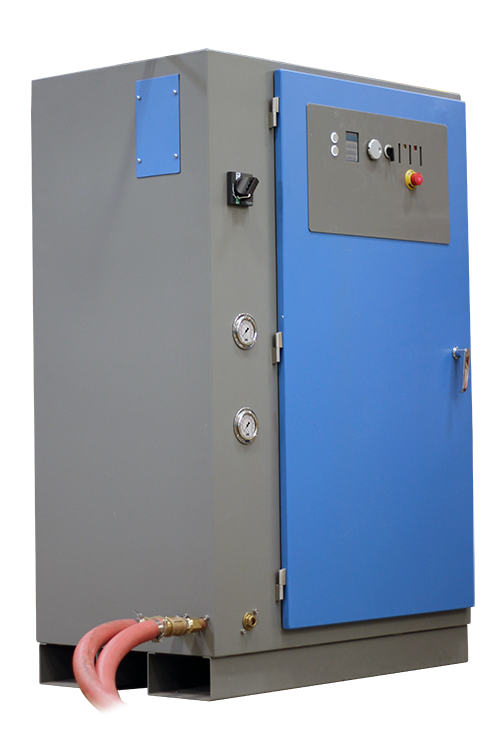

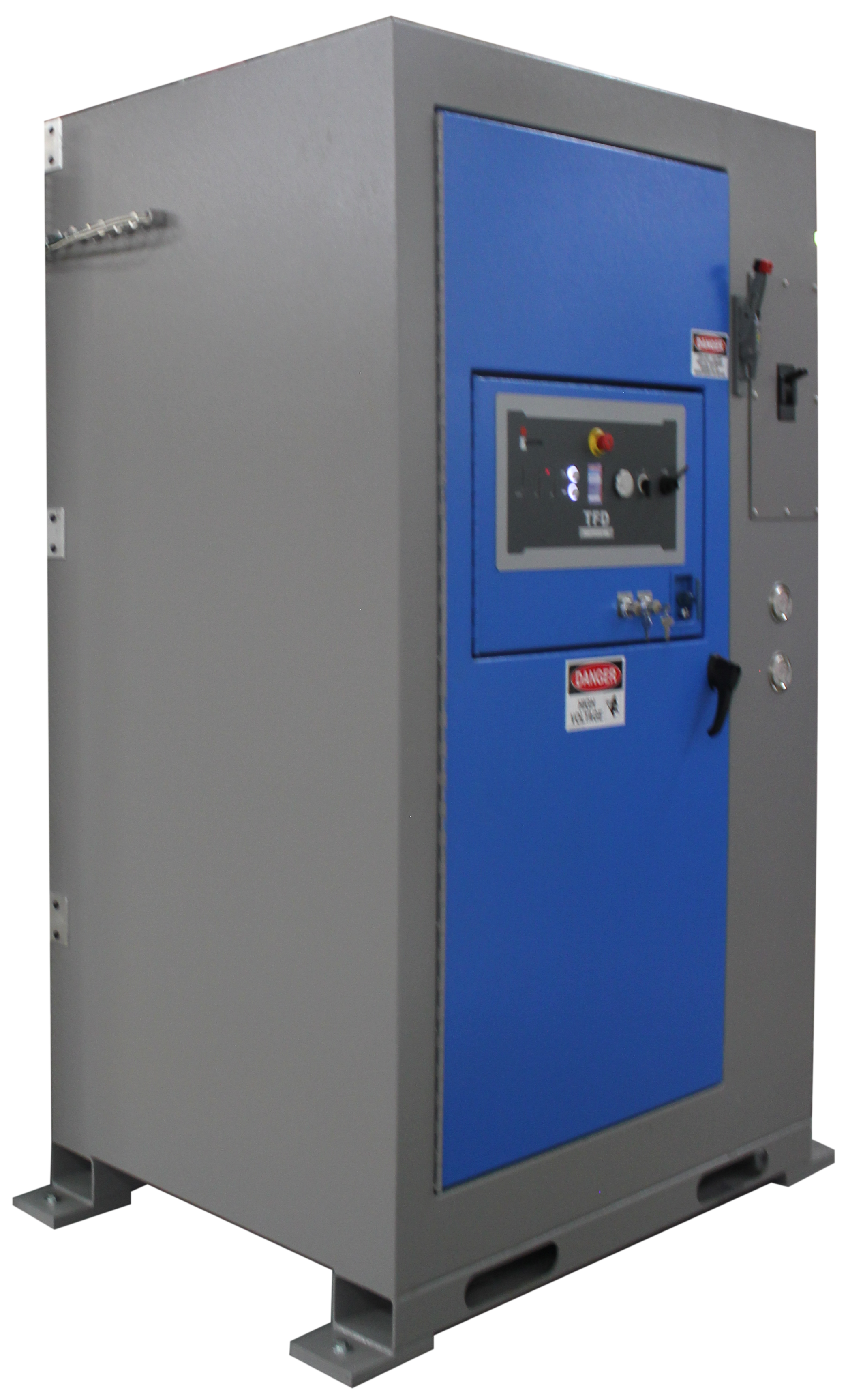

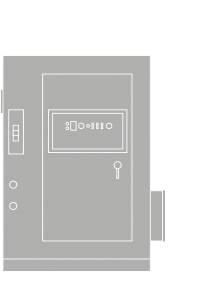

TFD Induction Power Supply

The TFD Induction Power Supply is the new standard for transistorized power supplies.

Optimized for performance with Digital-iQ™ Control

The TFD Induction Power Supply is designed with flexibility in mind it is easily matched to the working load to suit the required induction coil configuration. During operation, panel mounted digital meters continuously display power (kW), frequency (kHz), output current and voltage.

Critical running parameters are continually monitored, at high speed to ensure the unit regulates to see limits rather than trip. The TFD allows for simultaneous regulation to Power, Voltage, Current and Optional Temperature Limits via pyrometer or T/C. These signals are readily available for interface with an external  PC based monitoring and data storage system, the Digital-iQ Manager.

Robust Design is Critical

The TFD Induction Power Supply is available in models to match single turn High Current/Low Voltage and brazing coils through to multi-turn High Voltage coils (2000 V) commonly used for multi-turn hardening or tempering, crystal growing, CVD, wire, tube, Pipe and strips heating along with many other induction heating applications.

Available with built-in load tuning capacitors and multi-tappable output isolation transformers, a variety of heating coils can be matched for full power operation over a range of load conditions. Optional Heat Stations are available to allow the power supply to be located away from the heating location.

Allowing for standalone or ensemble operation, TFD power supplies are designed to interface seamlessly with a wide array of fixtures, conveyors, robotics, and other and part handling machines such as Induction Scanners.

Digital-iQ Controls

The TFD Induction Power Supply is equipped with the intuitive, high-speed Digital-iQ™ control platform. Built from the ground up for the simplicity of use the intuitive user interface makes any task quick and precise simple Digital-iQ™ controls provide advanced communication, control, and programming features to achieve unbeatable accuracy. The Digital iQ™ controllers integrate ultra-high-speed signal processing and control response.

Each unit can be operated by direct manual controls on the unit, programmed via an internal digital controller, by a programmable logic controller with virtually unlimited recipe storage, by the external programmable logic controller, by external optional PC with Digital-iQ Manager or from a remote control box. Digital iQ™ Manager software allows operators to remotely connect, control, and monitor all the telemetry from a TFD unit. The unit can monitor and graph multiple data sources on the remote unit allows for precise monitoring of process parameters. Processing the Digital-iQ™ controller data is simple as graphs and tables are printable, and tabulated data is exportable as excel workbooks.

Multi-level password protection secures data and can easily be created using the digital interface.

TFD Induction Power Supply Advantages:

  • Flexible operation over a wide range of heating loads
  • Operating conversion efficiency up to 95%
  • Latest IGBT technology and lower device count
  • Simplified, fully self-protecting power design

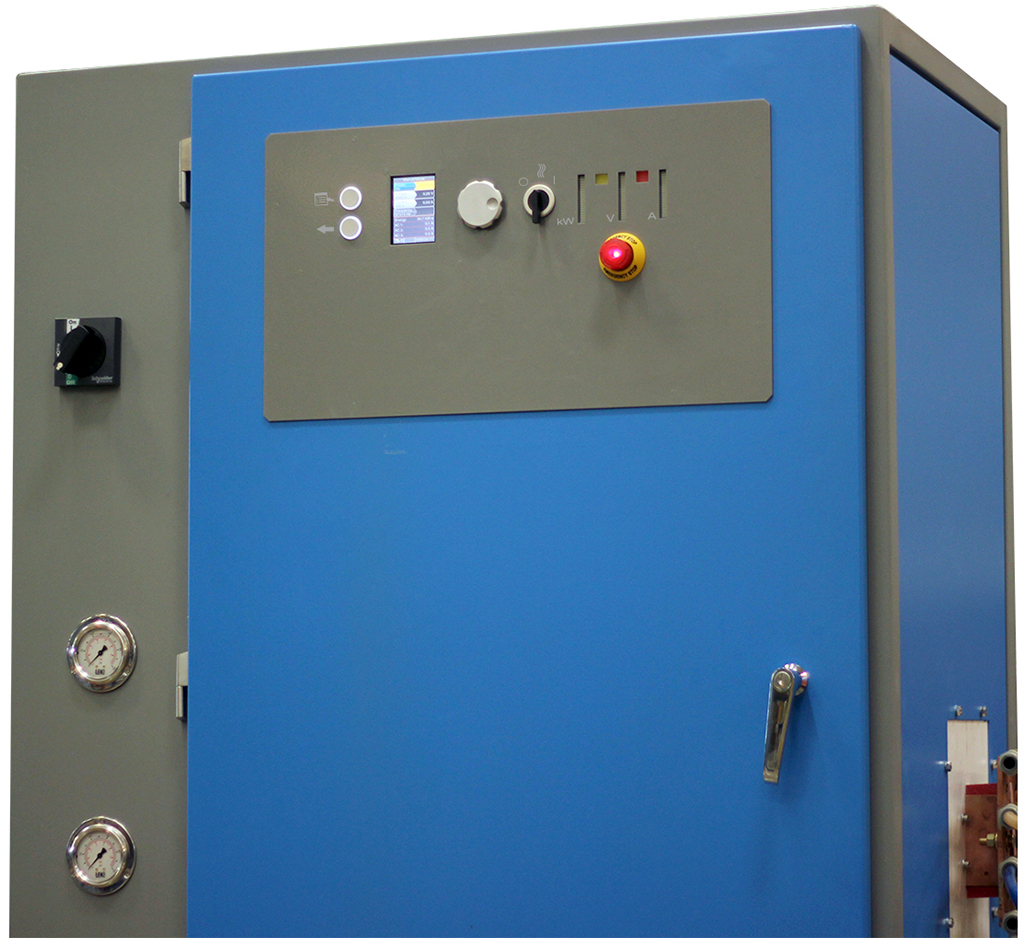

  • Intuitive Front Panel Color Display Control and LED status indicators
  • Higher reliability reduced spare part requirement
REQUEST A QUOTE »

Radyne Corporation

211 W Boden St. Milwaukee, WI 53207

  • Phone: (414) 481-8360
  • Toll Free: (800) 236-8360

Features



Connections USB Host and Device Ports
Emergency Stop
Digital iQ™
Circuit breaker
PLC Port
Ethernet Port
Water Inlet Port
Water Outlet Port
Operating System Digital iQ™ Real Time Controls & Monitoring

Monitored Parameters:

Power, Frequency, Voltage and Current

Water Temp In, Out

Coil Return Water Temp

Water Flow Rate

AC Input Current

DC Buss Voltage & Current

Internal Humidity Measurement

Dew point Calculation

Inverter Current and Coil Voltage

PLC connectivity

2 GB Storage

Safety Emergency Stop button

Door interlocked disconnect switch and fast-acting semiconductor-type fuses

External, inlet and outlet cooling water pressure gauges

Water pressure differential and manual reset temperature switches on each water circuit.

Input line disconnect with UVR

Service & Support 24-7 technical support and service

TFN/TFD training seminars*

Annual Preventative Maintenance Programs

Upgrades External PLC
Warranty 12 month limited warranty
Extended warranty*

*Available for purchase



Tech Specs

Small Cabinet
TFD
Medium Cabinet
TFD
Large Cabinet
TFD

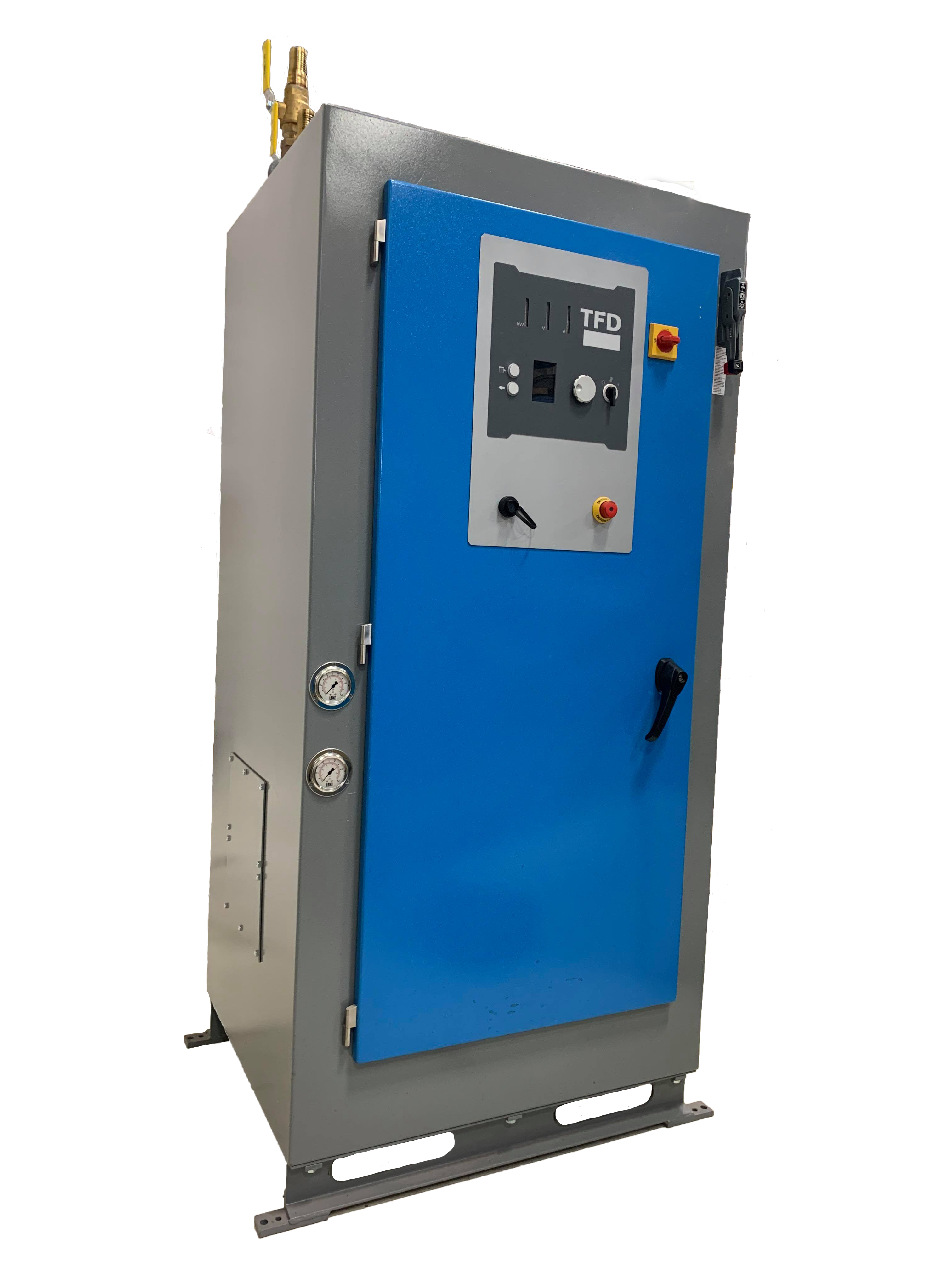

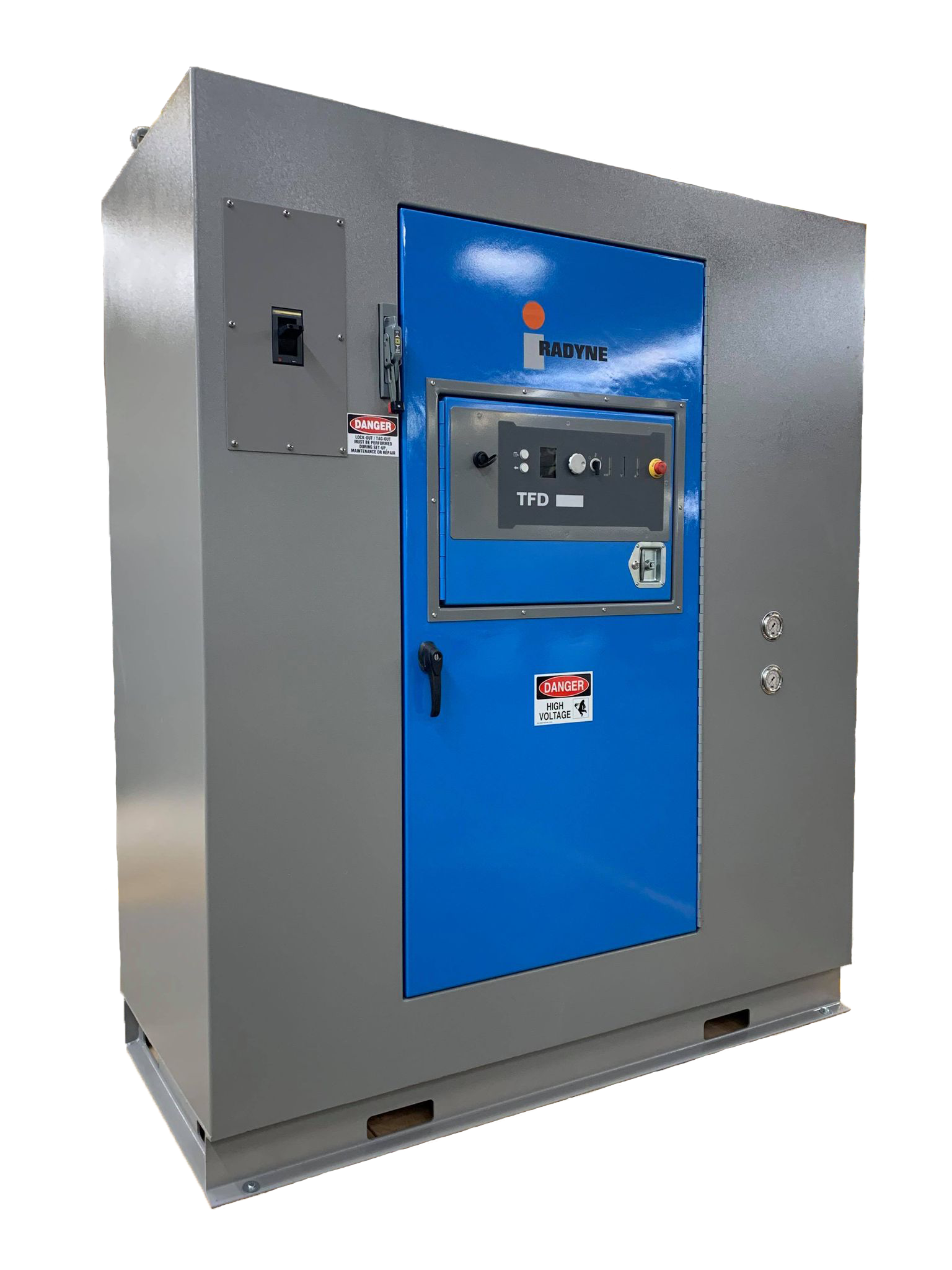

 Power 50 – 100 kW 150 – 300 kW 300 – 600 kW
Frequency 3, 10, 30 or 50 kHz

Multi-Frequency Selectable Models optional, e.g. 3/10 kHz, 10/30 kHz, 3/10/30/75 kHz, 3/10/50/85 kHz

Line Voltage 240 VDC or 480 VDC
Dimensions 36.00 x 30.00 x 76.00 in.
[914.4 x 762 x 1930.4 mm]
72.00 x 36.00 x 90.00 in.
[1828.8 x 514.6 x 914.4 mm]
90.00 x 36.00 x 90.00 in.
[2286 x 914.4 x 2286 mm]
Input Line Voltage 240 VDC or 480 VDC
Input Requirement 62-186 kVA 250-375 kVA 375-745 kVA
