Line Pipe Heating System

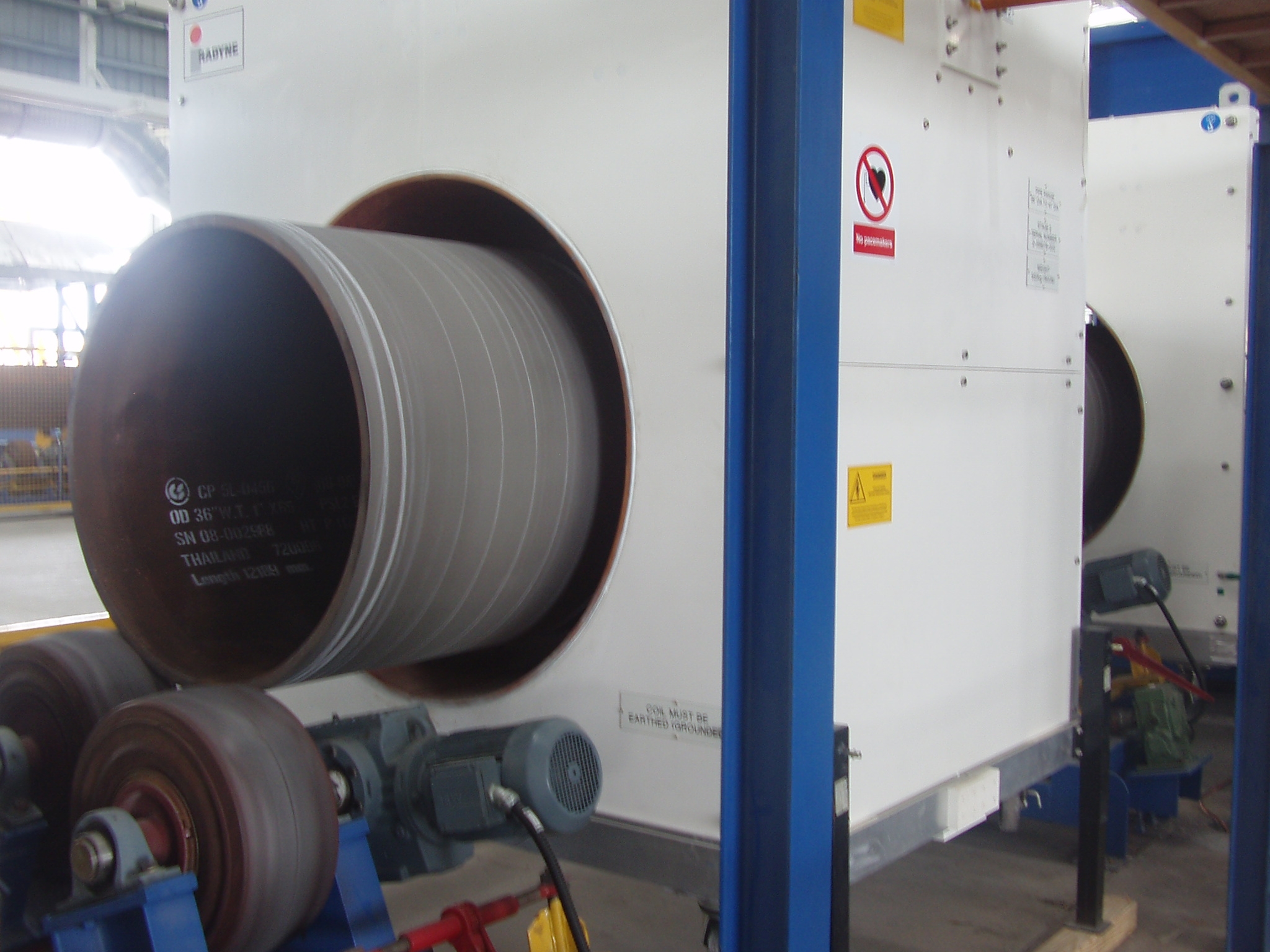

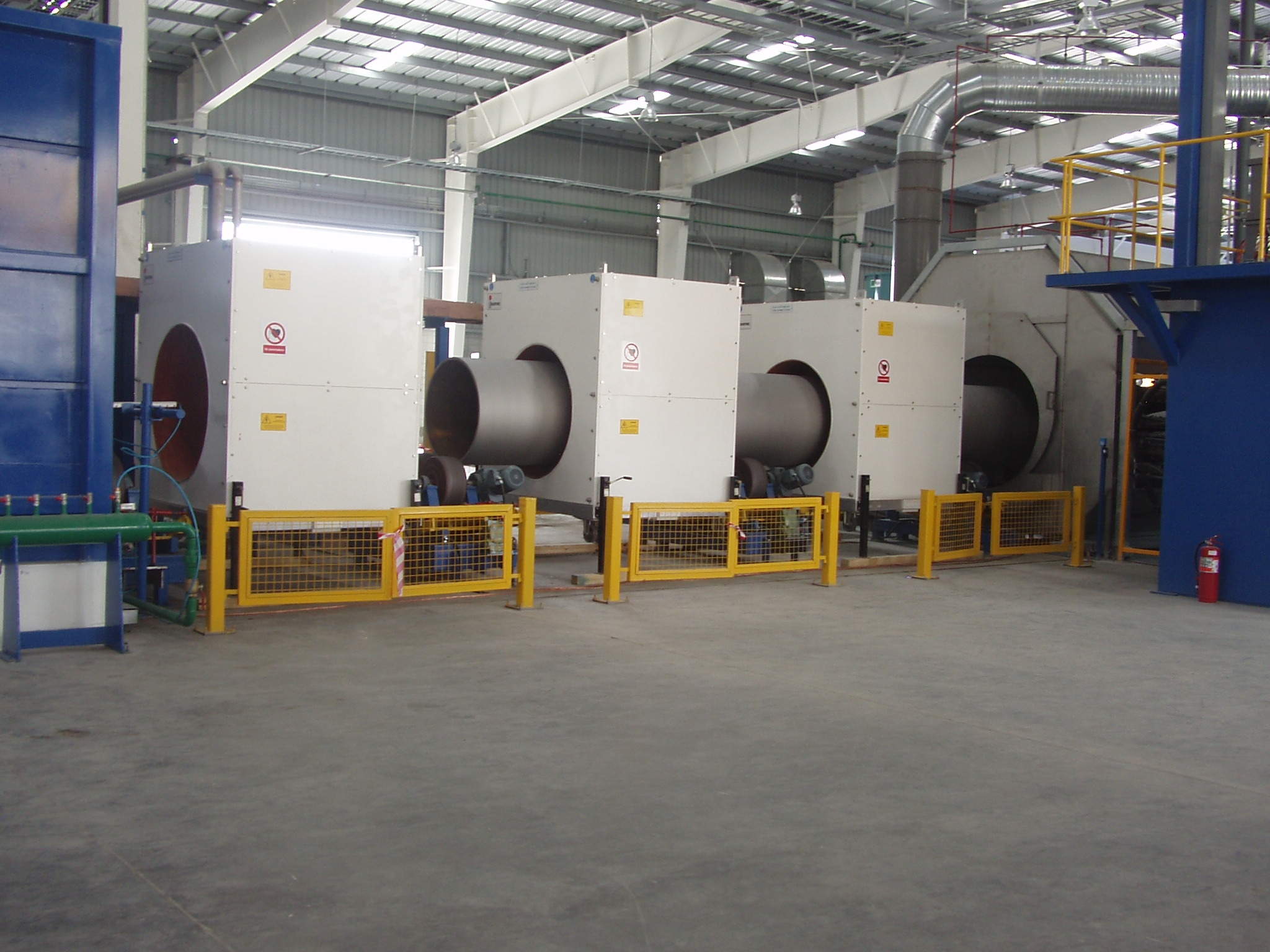

The Radyne Line Pipe Heating System facilitate pre-heating (prior to FBE coating) and induction drying of API grade line pipe and high quality water pipe.

The system supports many standard sizes of line pipe, ranging from 8 in. [200 mm] to 120 in. [3 m] in diameter. The Line Pipe Heating System is versatile, supporting a variety of line pipe types, sizes, and handling requirements.

The Systems are designed to provide a highly efficient means of preheating or drying surface moisture, prior to coating.

REQUEST A QUOTE »

Radyne Corporation

211 W Boden St. Milwaukee, WI 53207

  • Phone: (414) 481-8360
  • Toll Free: (800) 236-8360

Features

  • Designed for ease of mobility within the pipe mill.

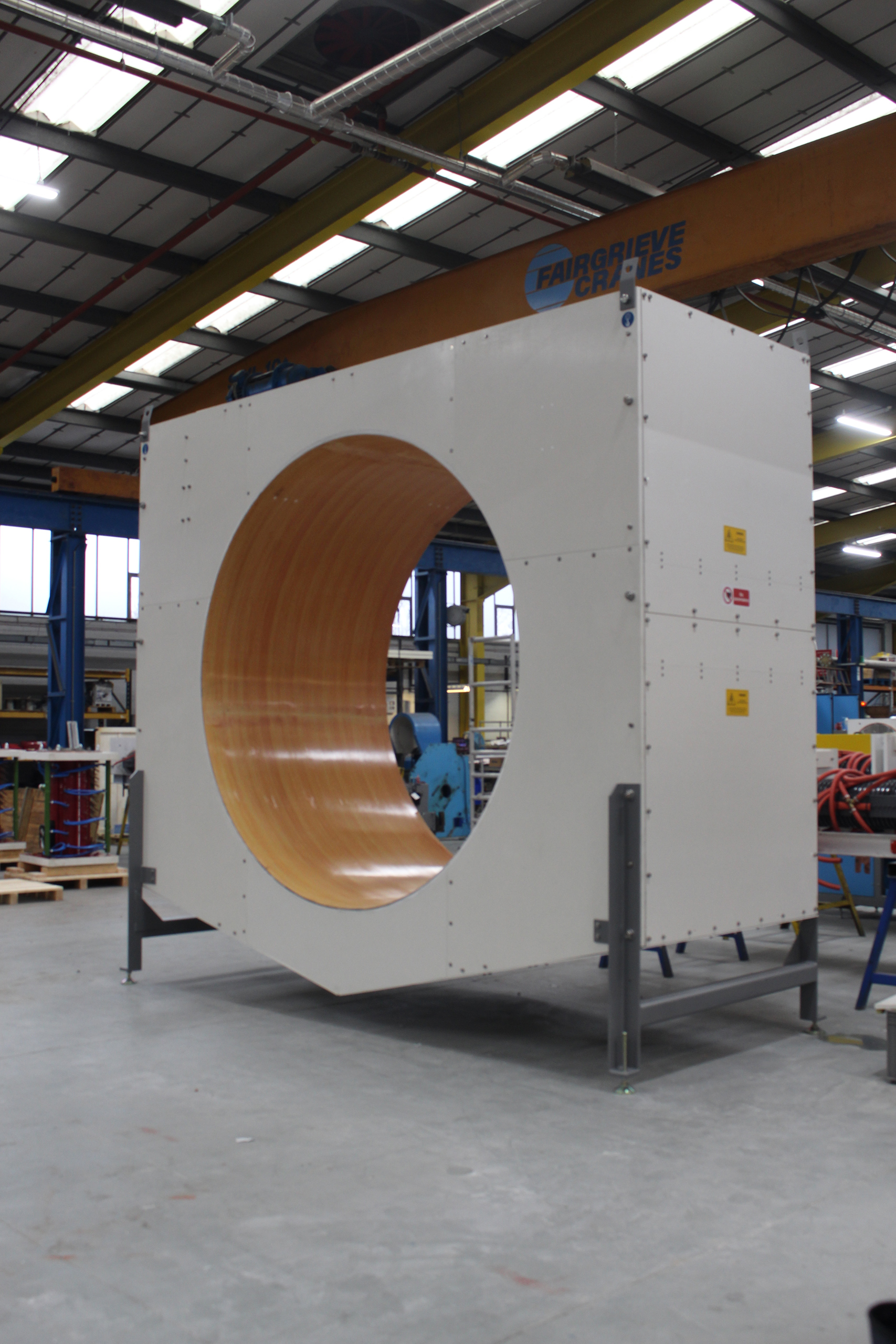

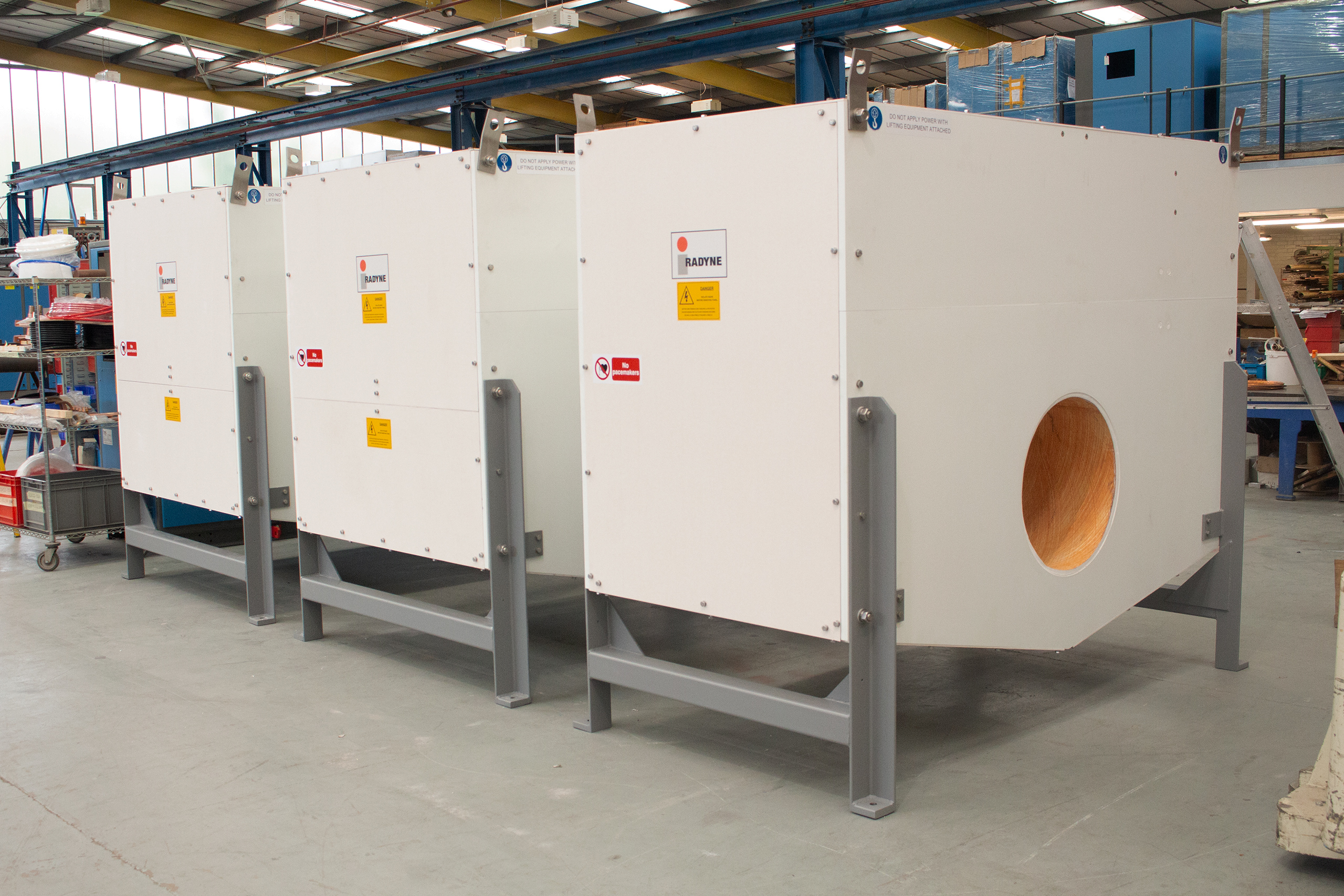

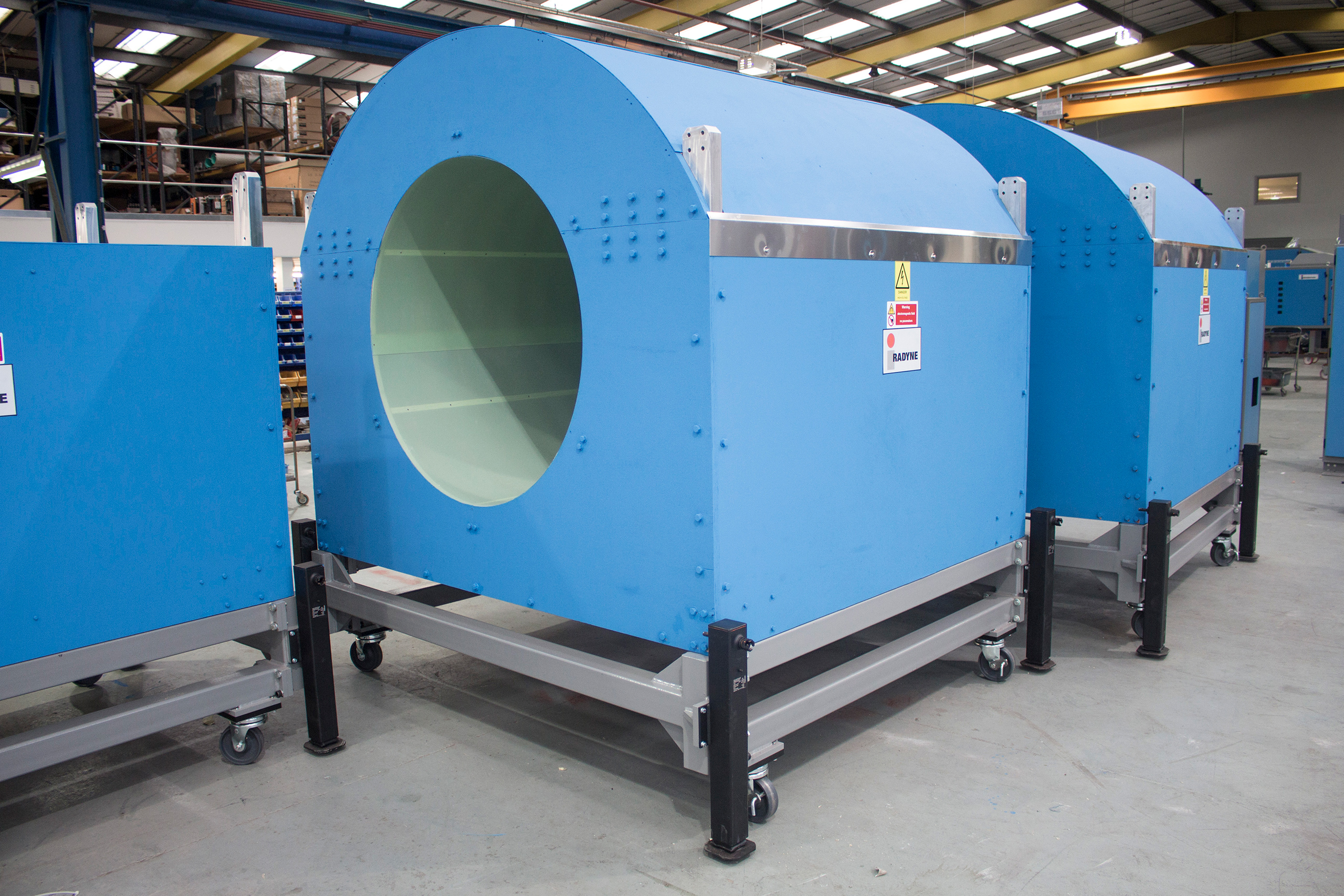

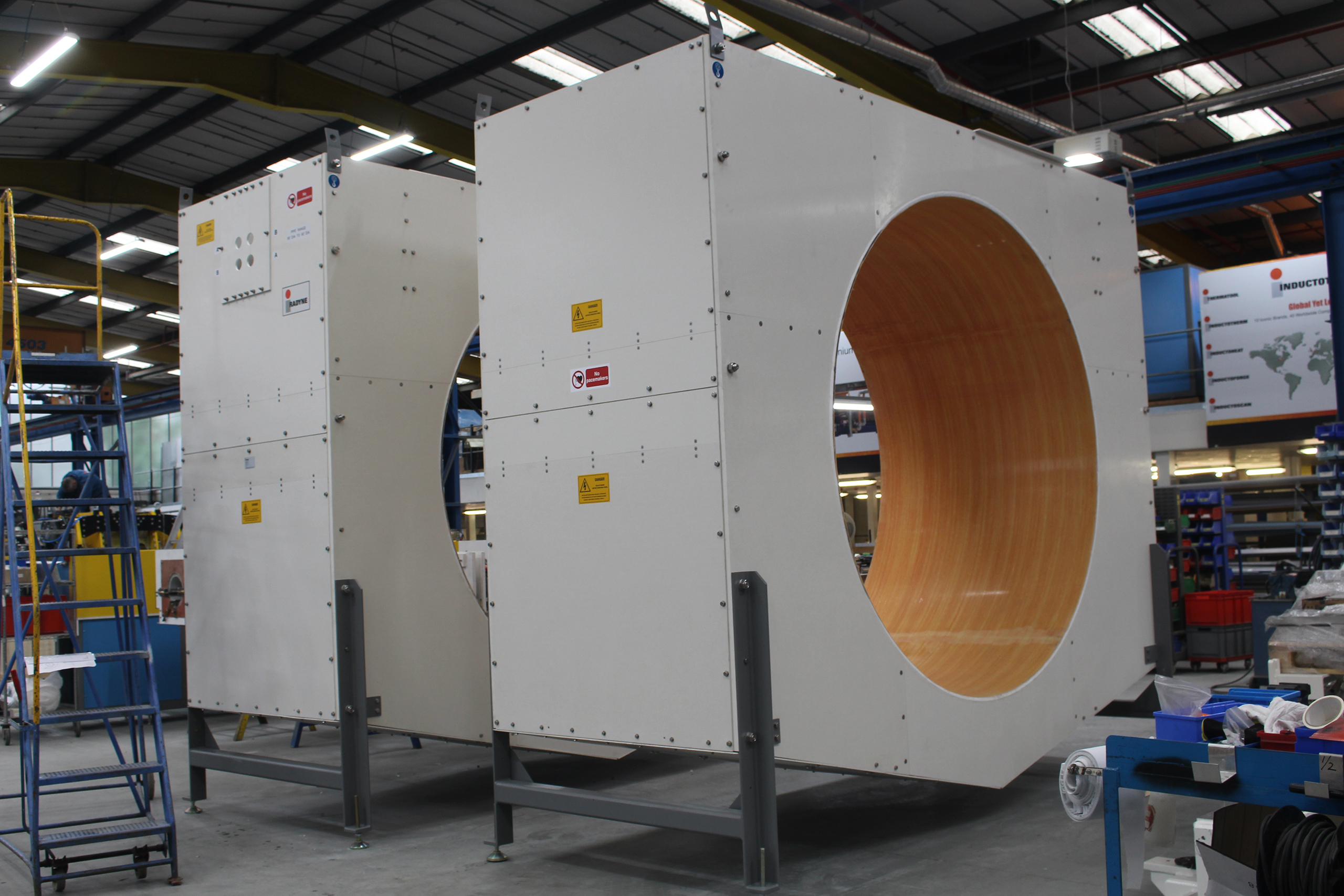

  • Integral wheels fitted to the base of each induction coil enable quick and easy movement from one line to the next
  • Heavy-duty lifts allow simple and efficient vertical positioning
  • Hoisting rings fitted to the top of each coil enable crane lifting for positioning
  • Quad and double-joint rack technology

Tech Specs

Line Pipe Heating System
Wall Thickness 0.197 – 1.97 in. [5 – 50 mm]
Line Speed 200 – 350 m2 per hour
Pipe Size range  2 – Sizes Up to 120 in. [50 – 3050 mm]
Power Range 5 – 7000 kW
